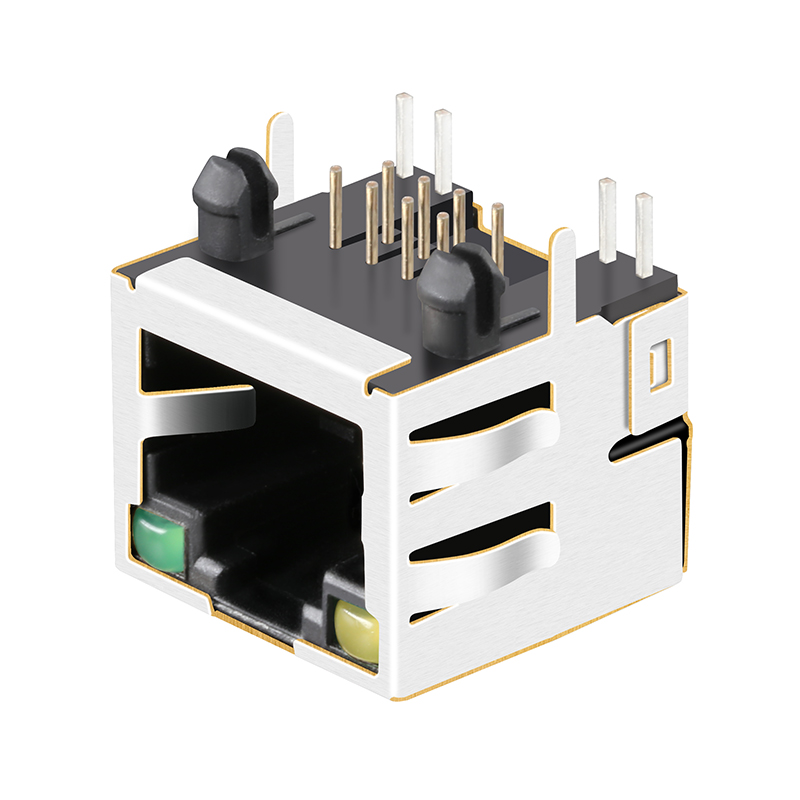

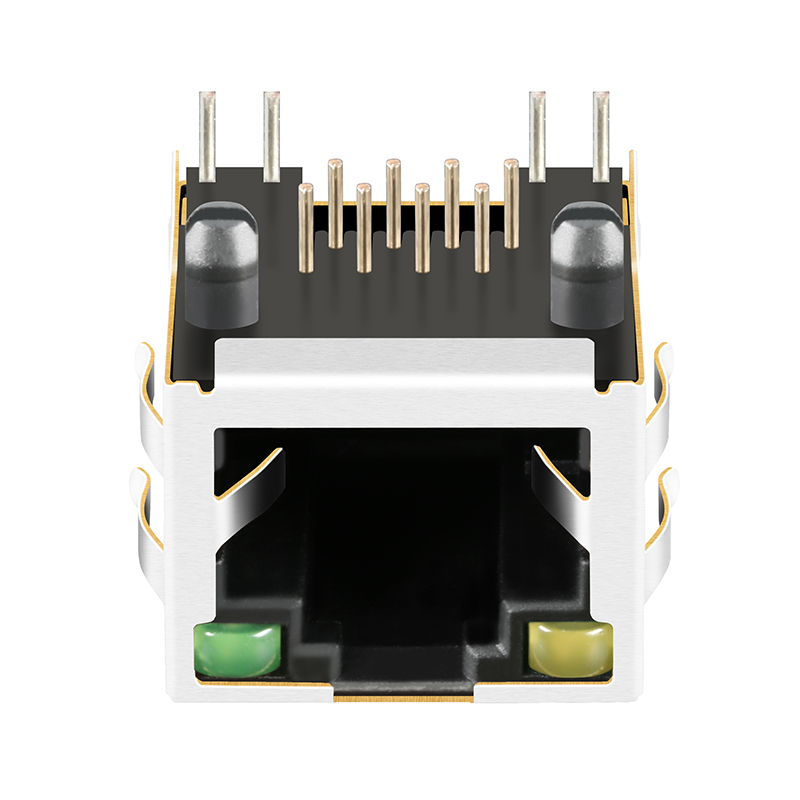

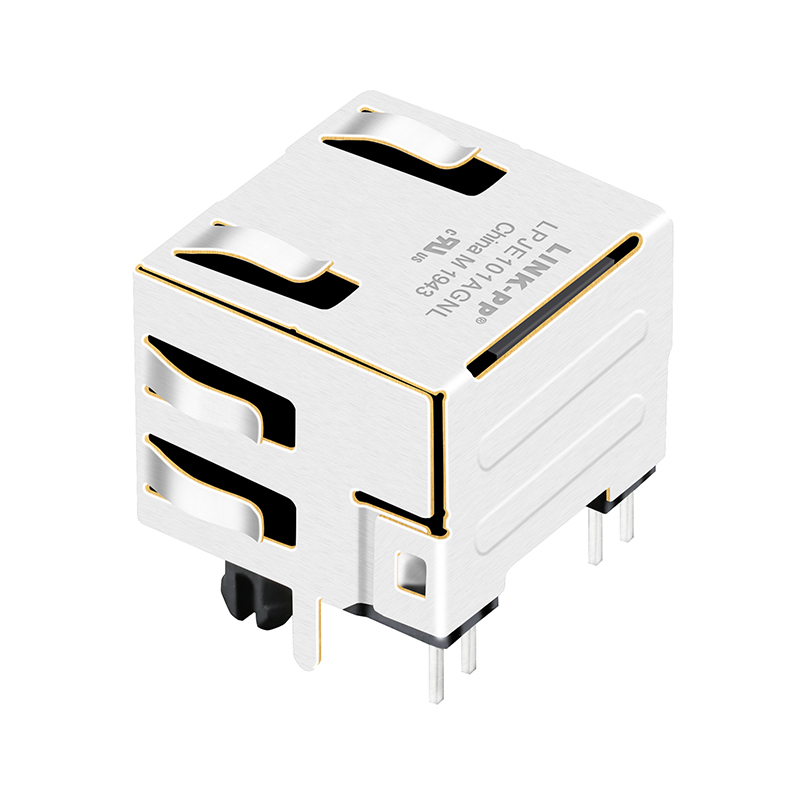

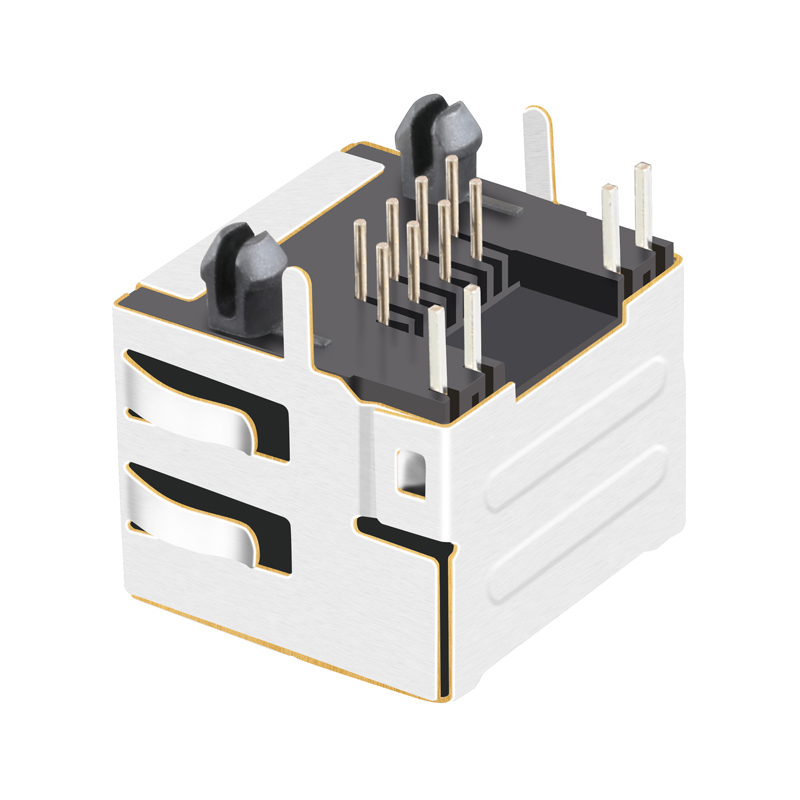

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
1 / 5
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

Send Inquiry

Product Description

Product Description

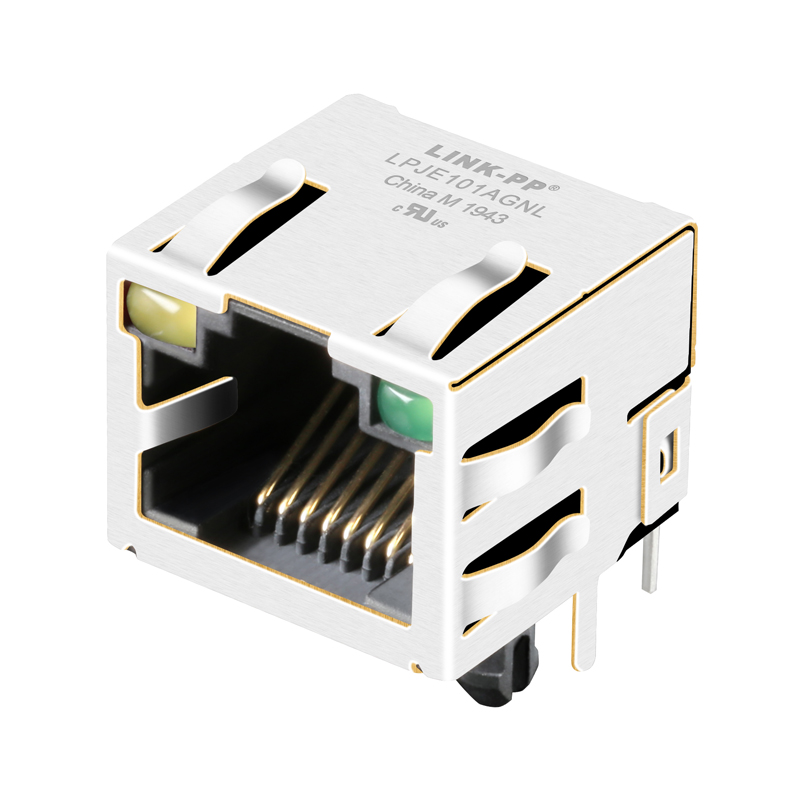

Product View 1
Product View 2
Product Specifications
Model NumberLPJE101AGNL
Part StatusActive
Connector TypeRJ45
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green
ShieldingShielded
Number of PortsSingle Port
FeaturesBoard Guide
Tab DirectionUp
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C
Key Characteristics
✔️
RJ45 Connector with integrated transformer / common mode choke.
✔️
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s.
✔️
Available in SMT, THT and THT with USB options.
✔️
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt.
✔️
HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
Characteristics Diagram
Packing & Delivery

Standard Packaging: 100 pcs per tray, 3000 pcs per carton.

Carton Dimensions: 54.5 * 28.5 * 27 cm

Weight: 13.1 KGS per carton (3000 pcs)

Packaging View
Production Showcase
Showcase 1
Showcase 2
Showcase 3
Showcase 4
Showcase 5
Showcase 6
Showcase 7
Frequently Asked Questions
❓ 1. How do you guarantee the quality of your connectors?
We ensure quality through a rigorous process: always a pre-production sample before mass production and a final inspection of all units before shipment.
❓ 2. What types of magnetic components can I purchase?
Our core product range includes RJ45 Magnetics, LAN Transformers, RJ11 Connectors, Standard RJ45 Connectors, and SFP modules.
❓ 3. What are the advantages of your RJ45 connectors?
We have nearly two decades of manufacturing experience. Our products are certificated by SGS, ISO9001:2008, UL, REACH, and CE, ensuring high reliability for global standards.
❓ 4. What is the typical production capacity?
With a large dedicated staff, we maintain a high productive capacity of up to 30,000K units per week to meet urgent and bulk requirements.
❓ 5. What delivery and payment terms are accepted?
We support various delivery terms including FOB, CFR, CIF, EXW, DDP, and Express Delivery. Payments can be made via T/T, L/C, Credit Card, PayPal, and Western Union in multiple major currencies.
❓ 6. Do these connectors support Power over Ethernet (PoE)?
Yes, our integrated RJ45 connectors support PoE up to 50 Watt and are compliant with IEEE 802.3af/at/bt standards.
